TECHNICAL SPECIFICATION SHEET

CUMULUS
SERIES-G3

High-precision multi-phase smart metering node designed for industrial-grade data telemetry. Features integrated LoRaWAN networking and strict ±0.1% accuracy tolerance under peak loads.

Op_Voltage

110V - 400V AC

Max_Current

80A / Phase

Comm_Protocol

LoraWAN + MQTT

Security_Level

AES-128 & ED25519 cryptography

DOWNLOAD PDF DATASHEET TECHNICAL SUPPORT

HARDWARE PARAMETERS

REV_2.4.1

ELECTRICAL RATINGS

Operating Voltage (L-N)180-240V

Operating Voltage (L-L)400-480V

Self Consumption≤ 2W

Single phase Maximum Current (Imax)80A

Polyphase Maximum Current300A per phase

Frequency50Hz / 60Hz ±5%

ENVIRON & EXTERNALS

Operating Temperature-20°C to +80°C

Storage Temperature-40°C to +85°C

Humidity≤ 95% non-condensing

Protection RatingIP54

CT Primary Range1-300A

CT Secondary Range5A

LABELLING &
PORT IDENTIFICATION

LoRaWAN antenna port - install before power on
LED Displays (Power, Status, Relay, COMM indicators)
Single Phase IN via 25mm cable gland (Live & Neutral)
Single Phase OUT via 25mm cable gland (Live & Neutral)

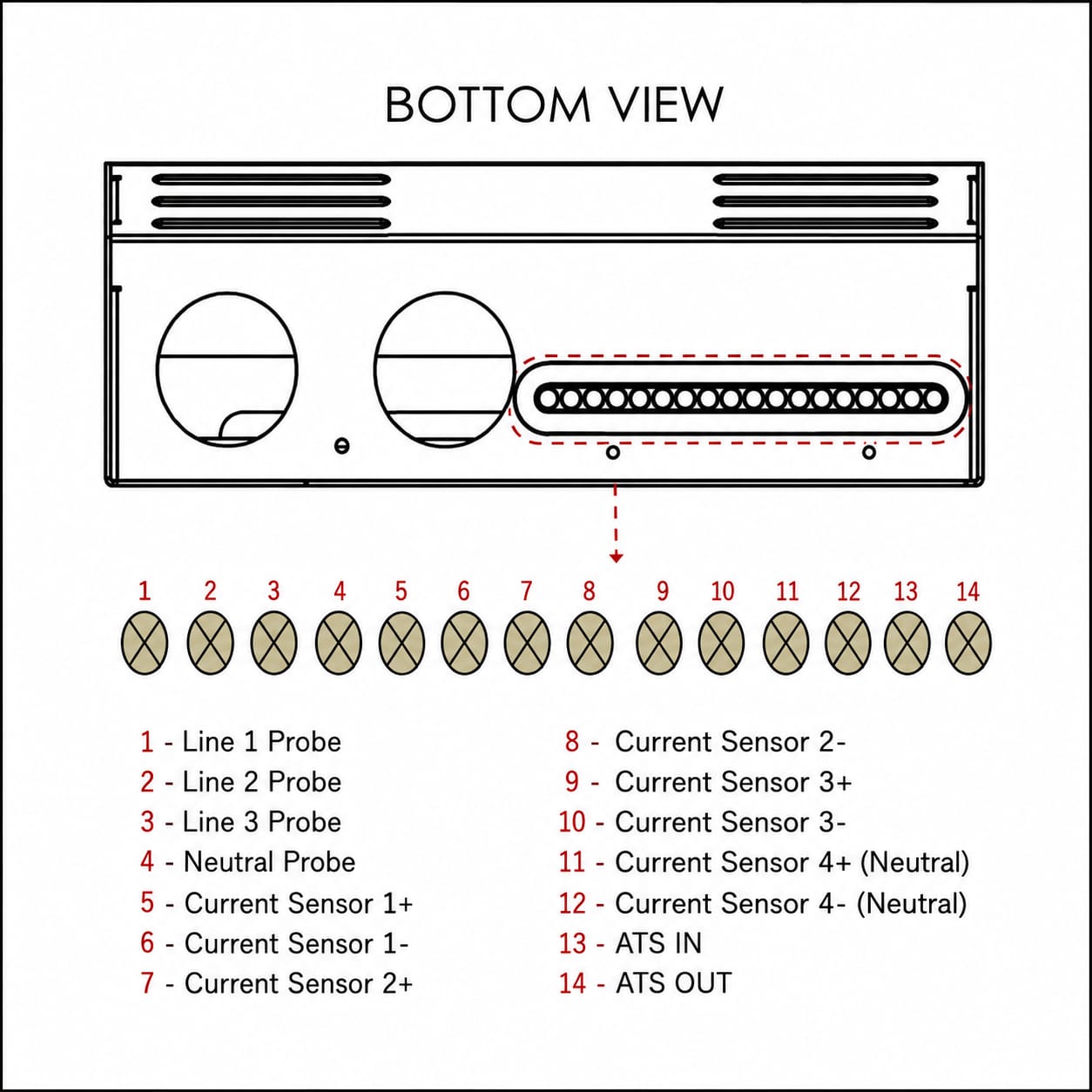

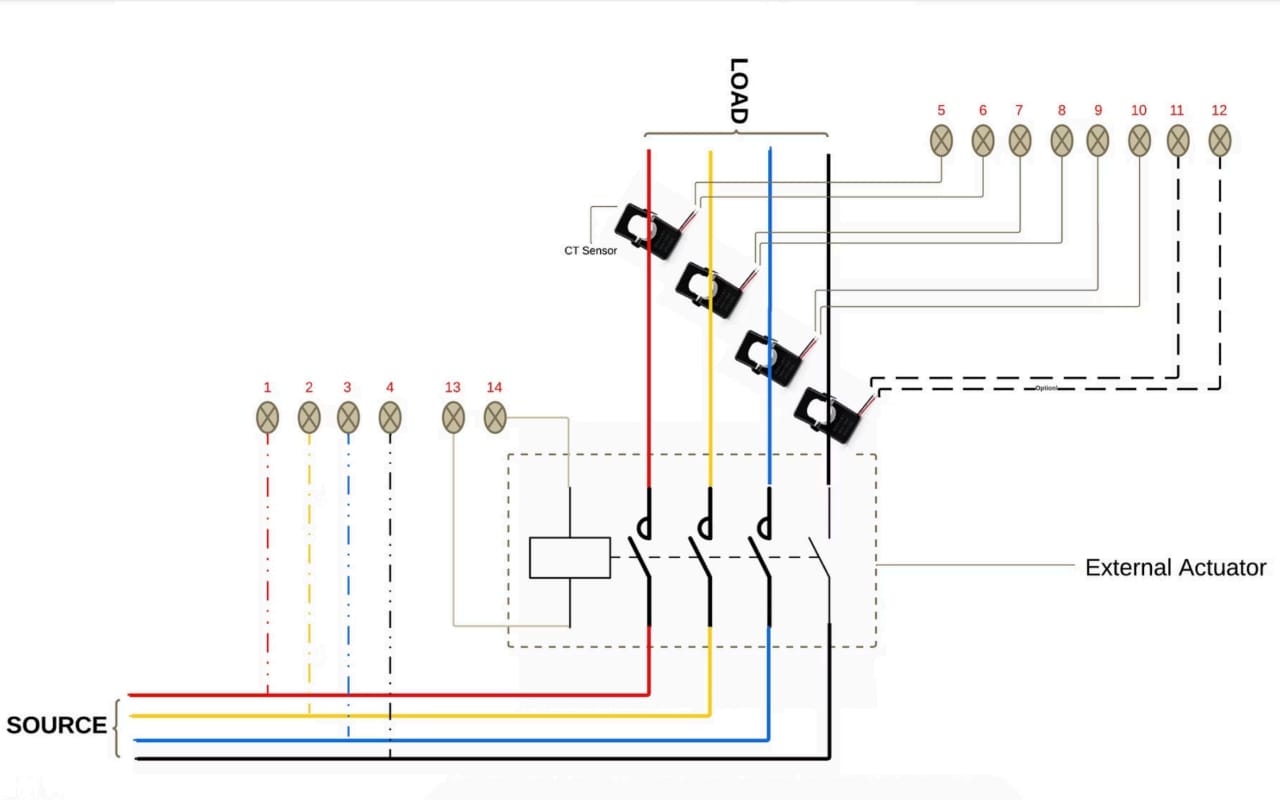

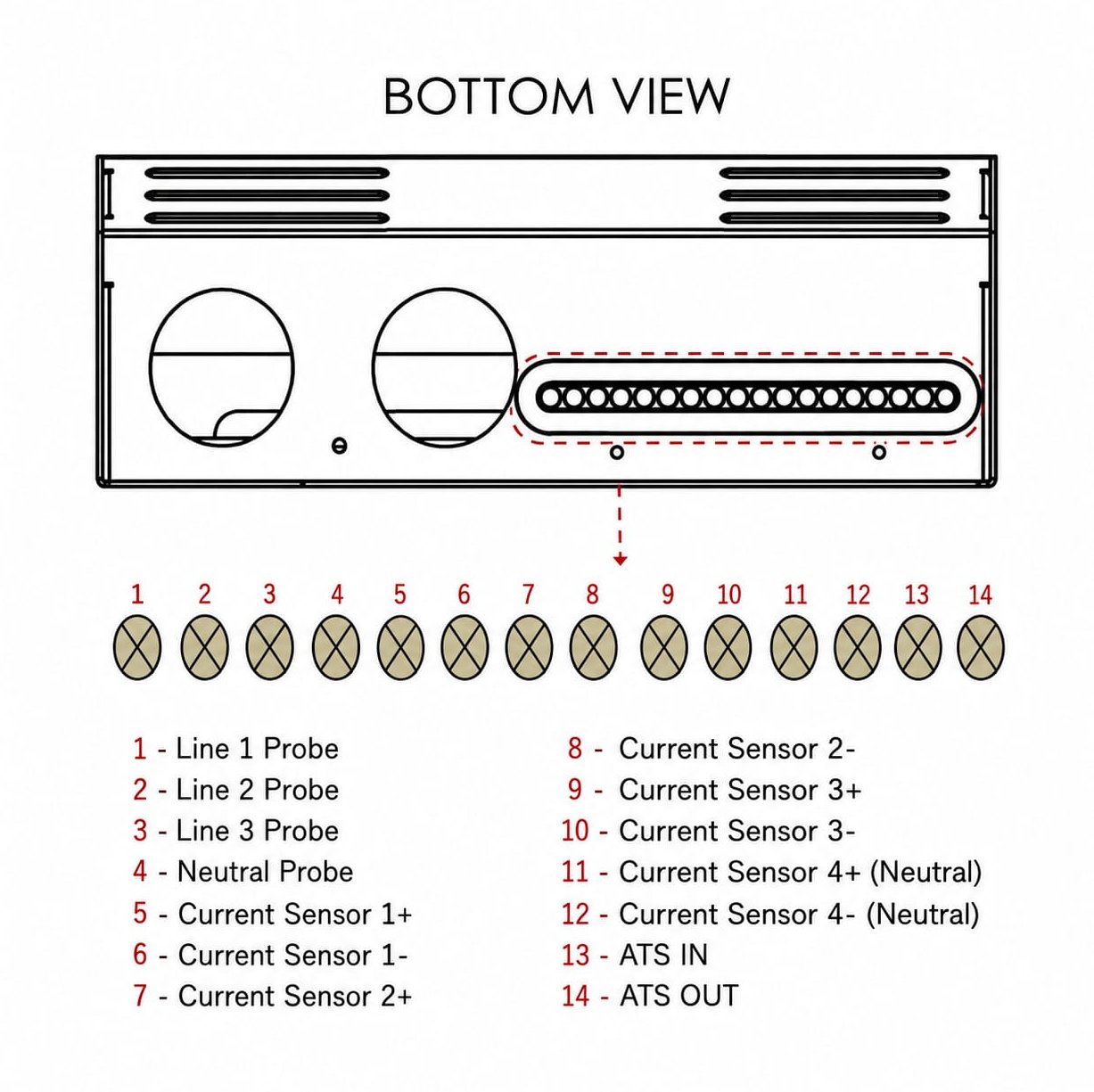

Polyphse Ports (see wiring diagram)
Ventilation slot - maintain clearance
DIN Rail Mount

METER LABELLING

SCALE: 1:2 (A4)

Installation Guide

Remove the metal terminal cover by unscrewing the fasteners before wiring. The meter features a standard DIN rail mounting groove (item 7) compatible with 35mm DIN rails. For wall mounting, use the provided bracket hardware and ensure the enclosure is level and securely fastened.
